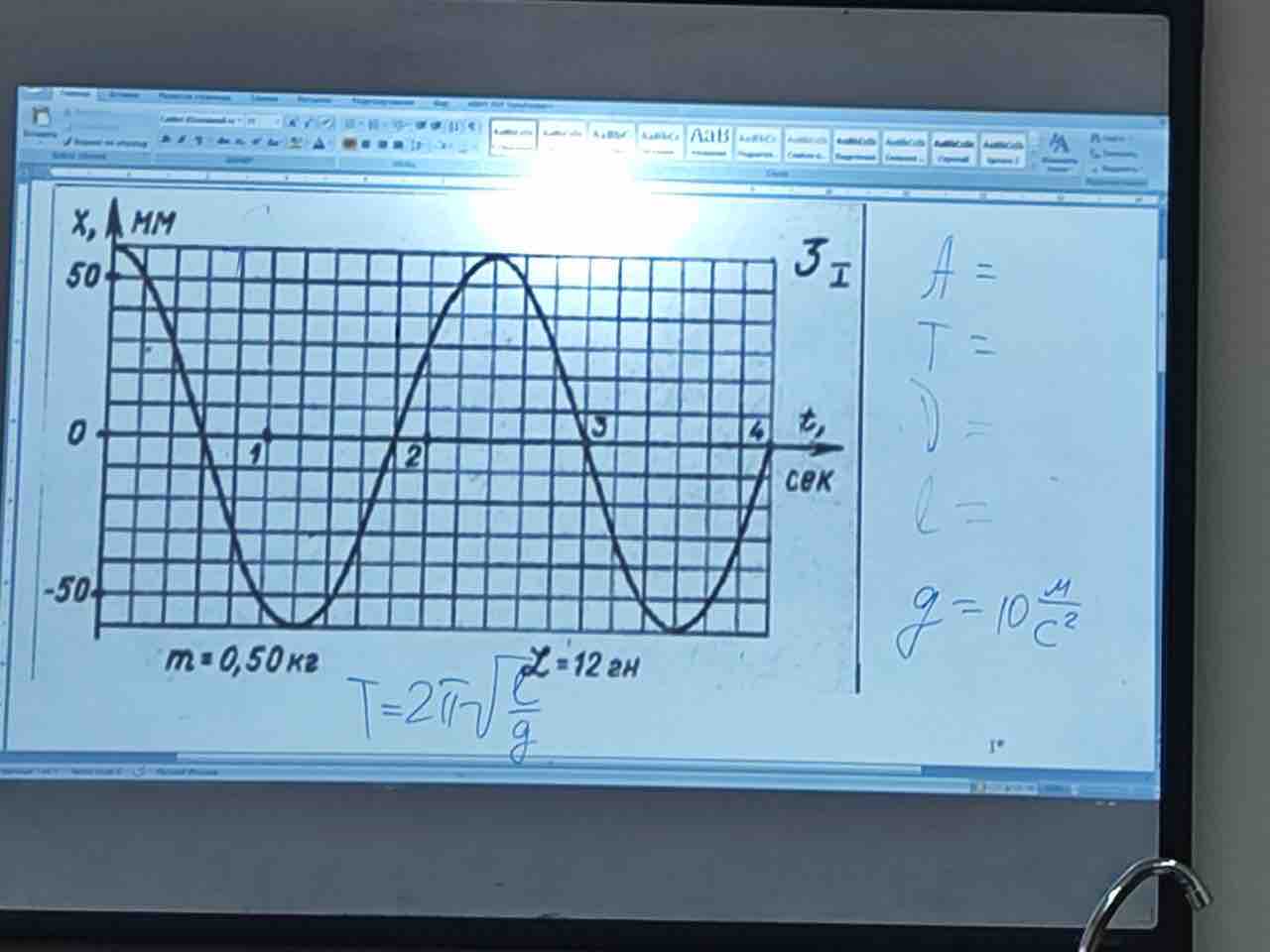

решите гарфик
To solve this graph problem, you should identify the parameters of the oscillating motion from the given information.
Amplitude (A): The amplitude is the maximum displacement from the equilibrium position. From the graph, you can see the maximum value on the y-axis.
Period (T): The period is the time it takes to complete one full cycle. Measure the distance along the x-axis for one complete wave (from peak to peak or trough to trough).
Frequency (f): Frequency is the reciprocal of the period, \( f = \frac{1}{T} \).
Angular frequency (\(\omega\)): Also, \(\omega = 2\pi f = \frac{2\pi}{T}\).
Equation of Motion: The general form is \( x(t) = A \sin(\omega t + \phi) \), where \(\phi\) is the phase constant.
Mass (m) and Force (F): These might relate to restoring force in a spring system, \( F = -kx \), where k is the spring constant.
Use these steps and relations to solve specific questions based on the graph. If numerical values or further context is needed, those should be obtained directly from the values and pattern observed in the graph.
